Recursion

Binary Search

Lesson

"Binary Search" is an algorithm you can use to quickly search through Sorted Arrays and other sorted data structures. We'll walk you through how Binary Search works below.

Problem: Given a sorted array arr, and a target number target, return the index of the target. If the target isn't in the array, return None.

The array contains unique elements.

First Few Test Cases:
binarySearch([1, 2, 3, 4, 5, 6, 7], 3)
# 2
binarySearch([2, 4, 6, 8], 6)
# 2
binarySearch([2, 4, 6, 8], 3)
# None

To solve this problem efficiently, you should use Binary Search. Binary Search is when you look at the middle of the element of your Sorted Array, and use it to eliminate half the elements from your search. For example, say we're looking for the number 3.

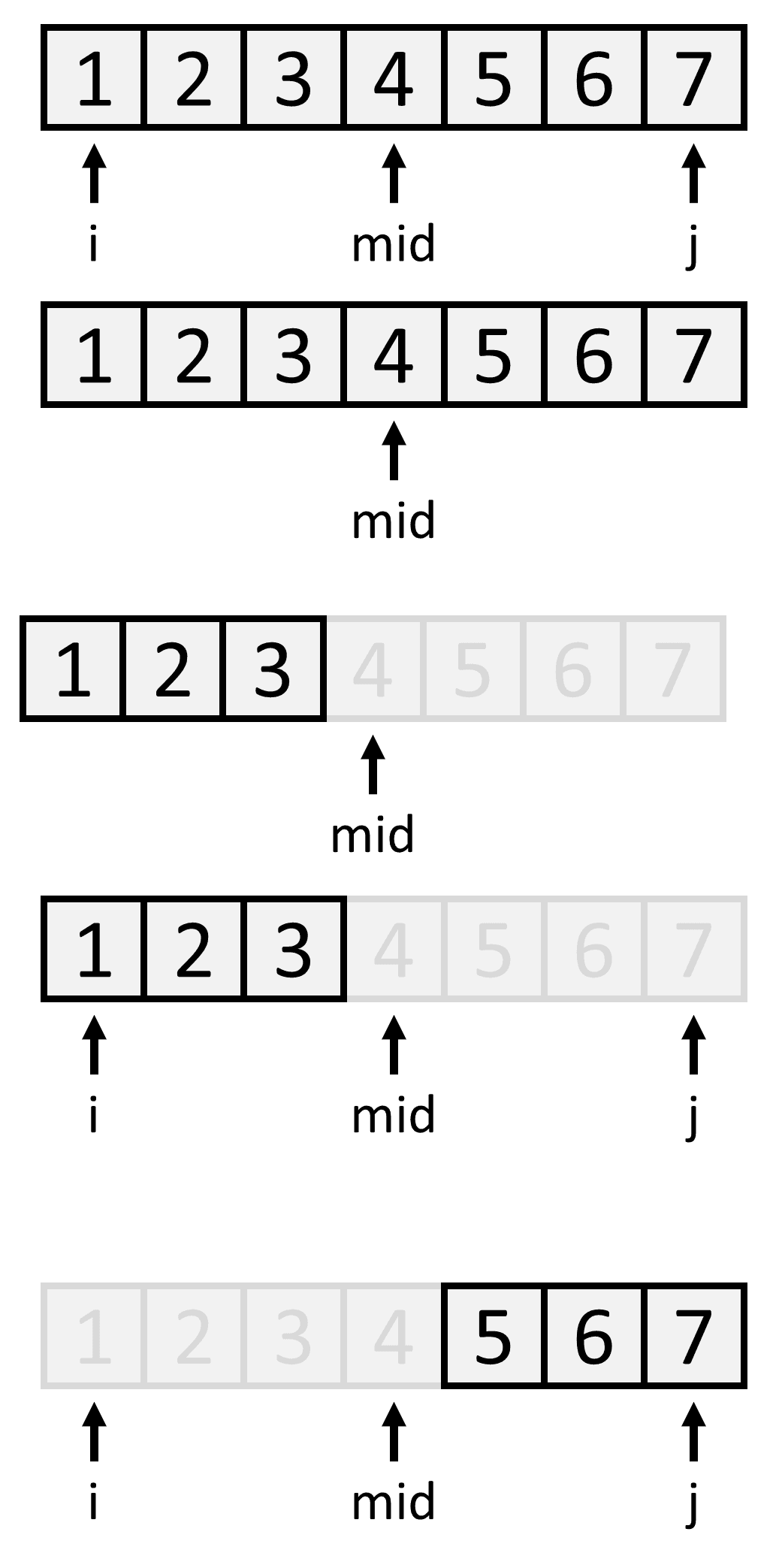

First, the binary search looks at middle element in the array:

Binary Search - image

Next the binary search compares the number we're searching for with the middle element. The number we're searching for (3) is less than the middle element (4). This means the number we're searching for must be to the left of the middle element:

Binary Search - image

We eliminated half of the array from the search after doing a single comparison. We can continue using the same logic to search the remaining elements [1, 2, 3], and so on. We stop when we've found our number or eliminated everything.

We want to create a function that does a Binary Search from index i to index j in the array.

search(i, j)

1. Recursion

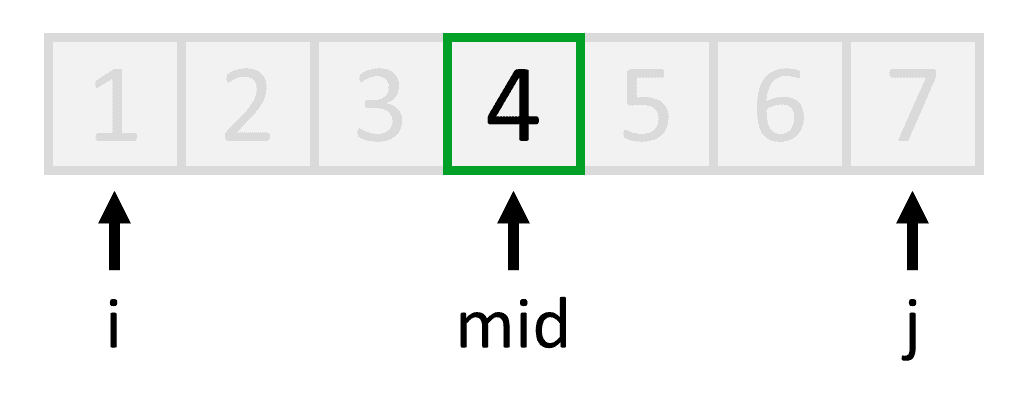

To do Binary Search, we always look at the middle element between i and j to decide what to search next.

Binary Search - image

If the middle element is less than the target, we search the left half of the elements next.

Binary Search - image

If the middle element is greater than the target, we search the right half of the elements next.

Binary Search - image

If the middle element equals the target, we're done.

Binary Search - image

Putting these three conditions together, we get our recursion:

def search(i, j):

    mid = (i + j) // 2
    if target < arr[mid]:  return search(i, mid-1)   # search the left half
    if target > arr[mid]:  return search(mid+1, j)   # search the right half
    if target == arr[mid]: return mid                # done

We found the middle index by taking the average of i and j, which is  mid = i+j2\texttt{ mid = }\frac{\texttt{i+j}}{2}. We also round mid down to the nearest integer using the syntax "//" to make sure that mid is always a valid index, and doesn't contain any decimals.

2. Base case

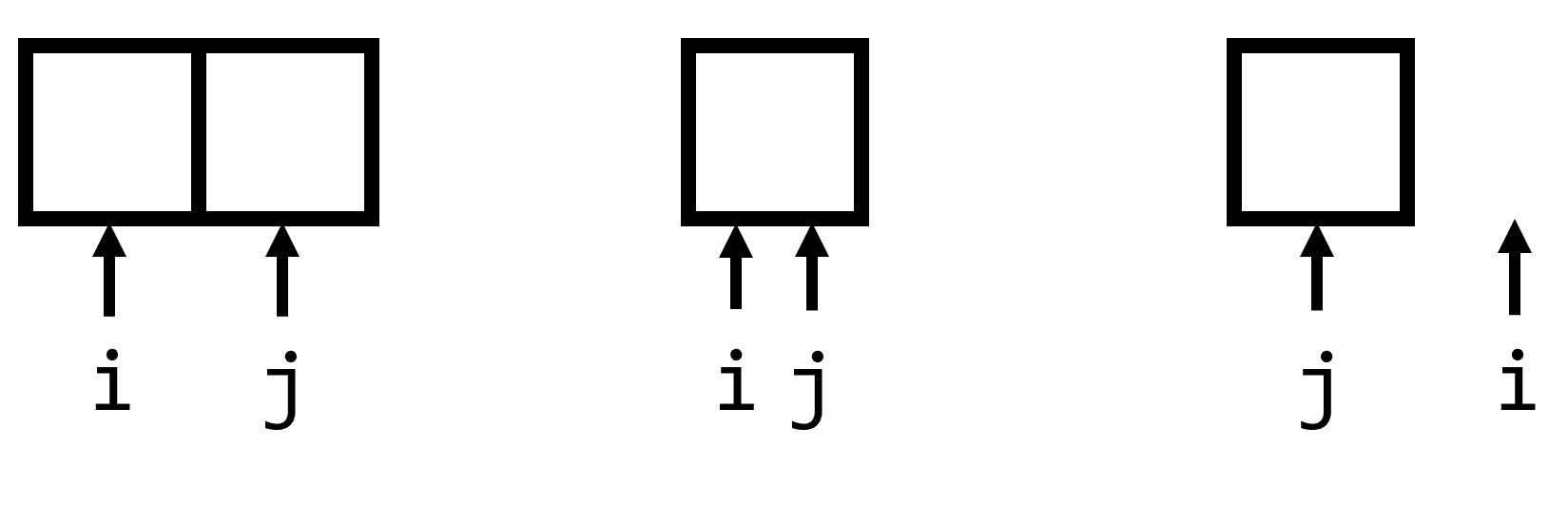

We need to figure out when our recursion breaks. This happens when the indexes i and j cross each other, because this is not a valid interval to search. In this case, we know the target is not in the array.

Binary Search - image
if j == i-1: # indexes cross each other
    return None # target isn't in array

3. Code

Combining the recursion and the base case, we get:

def binarySearch(arr, target):

    def search(i, j):
        # base case
        if j == i-1:
            return None

        # recursion
        mid = (i + j) // 2
        if target < arr[mid]:   return search(i, mid-1)
        if target > arr[mid]:   return search(mid+1, j)
        if target == arr[mid]:  return mid

    return search(0, len(arr)-1) # call our search

Time Complexity O(log⁡n)O(\log n). Halving the search every step means Binary Search does log⁡2(n)\log_2(n) operations.

Space Complexity O(log⁡n)O(\log n). search calls itself up to log⁡n\log n times, so the Call Stack gets log⁡n\log n calls deep.

You can easily convert this to iterative code:

def binarySearch(arr, target):
    i = 0
    j = len(arr)-1

    while True:
        # base case
        if j == i-1:
            return None

        # recursion
        mid = (i + j) // 2
        if target == arr[mid]:  return mid
        if target < arr[mid]:   j = mid-1
        if target > arr[mid]:   i = mid+1

Time Complexity O(log⁡n)O(\log n)

Space Complexity O(1)O(1)

Here's an explanation of why log⁡n\log n shows up:

Open SpoilerClose Spoiler

Let's use an example. Say we're searching this array for the value 3. The array starts out with nn total elements.

[1,2,3,4,5,6,7]\notag \texttt{[1,2,3,4,5,6,7]}

In the next step, we're only searching half the elements (n/2n/2).

[1,2,3]\notag \texttt{[1,2,3]}

After that we're only searching half of those elements (n/4n/4).

[3]\notag \texttt{[3]}

The binary search stops when it's gotten down to 1 single element.

We know that every step, the binary search halves the number of elements it searches. This means if it's done SS steps, then it's halved the array SS times. At that point, it's searching n/2Sn/2^S elements.

The binary search stops when we're left with a single element. This gives us an equation - the total number of elements at that point n2S\frac{n}{2^S} is equal to 1:

n2S=1\notag \frac{n}{2^S} = 1

Multiplying both sides by 2S2^S gives:

n=2S\notag n = 2^S

Taking the log of both sides gives:

log⁡2(n)=S\notag \log_2(n) = S

This equation tells us that a binary search stops when the number of steps we've done, SS, is equal to log⁡2n\log_2 n.

You might be wondering why anyone would store their data in a Sorted Array like in this problem and search for elements using Binary Search, when they could have just used a Set the whole time to do even better. The answer is that this is just a common interview problem. You'd indeed typically use a Set instead.

In the next few examples, we'll see that Binary Search is optimal when you want to search for an element that's less than a certain number (or ≤,≥,>\le, \ge, \gt). Generally, binary search is useful when you want to the biggest element less than a number, or vice versa (you can think of this as the sole purpose of binary search).
